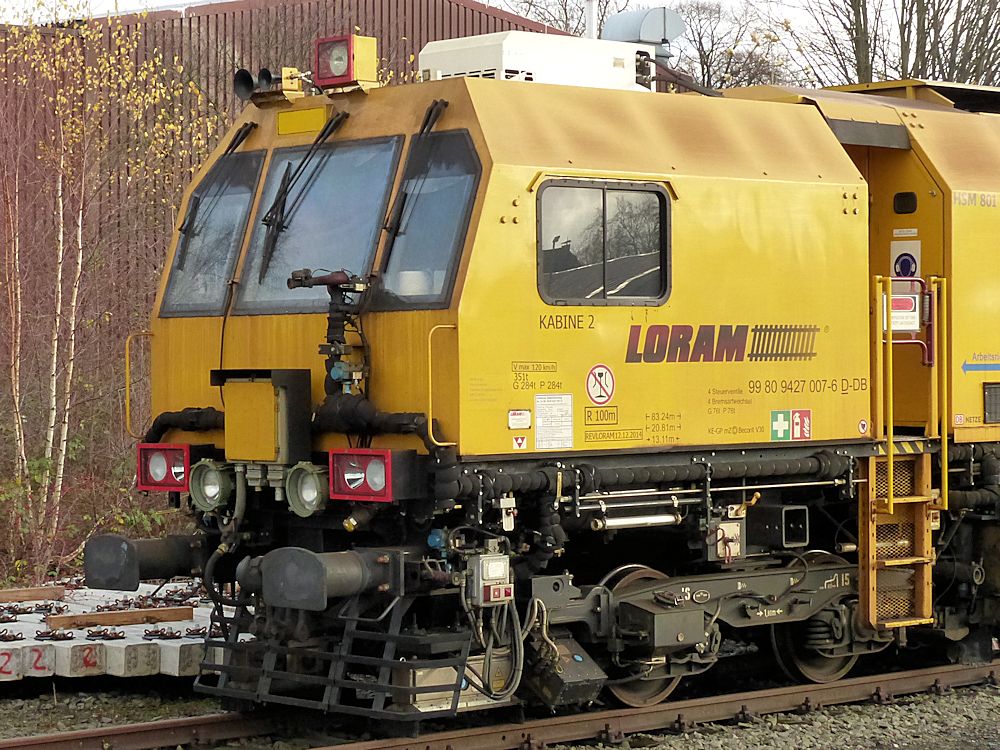

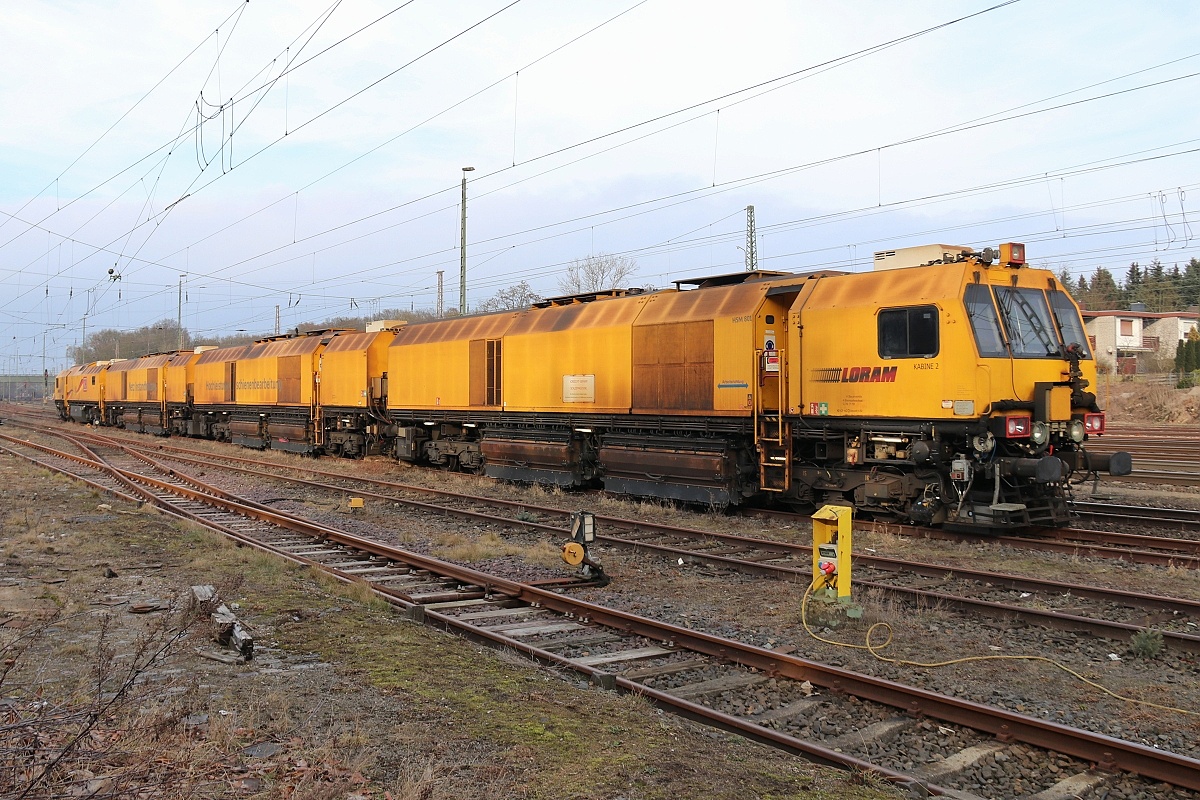

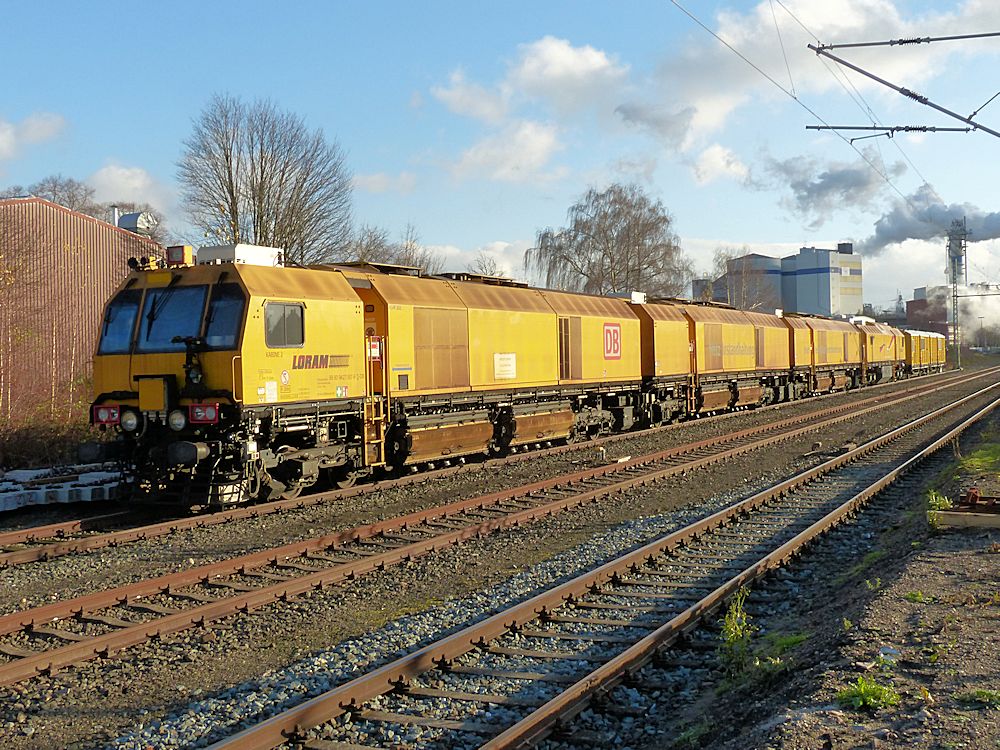

Loram RGI Series Rail Grinders
| Spec | Data |
|---|---|
|
Length |
Configuration dependent |
|
Width |
10.2 ft (3.1 m) |
|
Height |
13.8 ft (4.2 m) |
|
Maximum Axle Weight |
Up to 24.8 ton (22.5 tonne) |
|
Grind Motors |
16 to 96; 30 hp (22.4 kw) each |
|
Grind Speed |
2 – 12 mph (3 – 20 km/h) |
|
Travel Speed |
Self-propelled up to 60 mph (100 km/h) |
|
Gradeability |
Up to 3% |
|
Minimum Grind Radius |
10° – 13° curve (130 – 180 m radius) |
|
Minimum Travel Radius |
17° curve (100 m radius) |
|
Grind Angles |
70° Gauge – 30° Field or 75° Gauge – 25° Field (100° range) |
|
Generator Power |
Up to 2.7 Mw, 480 Vac/60 Hz, 3 ph |
|
Fuel Capacity |
Up to 3,600 gal (13,600 L) |
|
Water Capacity |
Configuration dependent |
|
Track Gauge |
39.4 – 63 in. (1,000 – 1,600 mm) |
RGI Series Grinder Additional Features & Benefits:
- High performance rail grinding in clearance, curve radius and weight restricted environments
- Industry-leading electric 30 hp (22 kW) motors for the most efficient metal removal, optimizes grind time and reduced costs
- Machines can be quickly joined to expand overall machine size and performance footprint in certain configurations

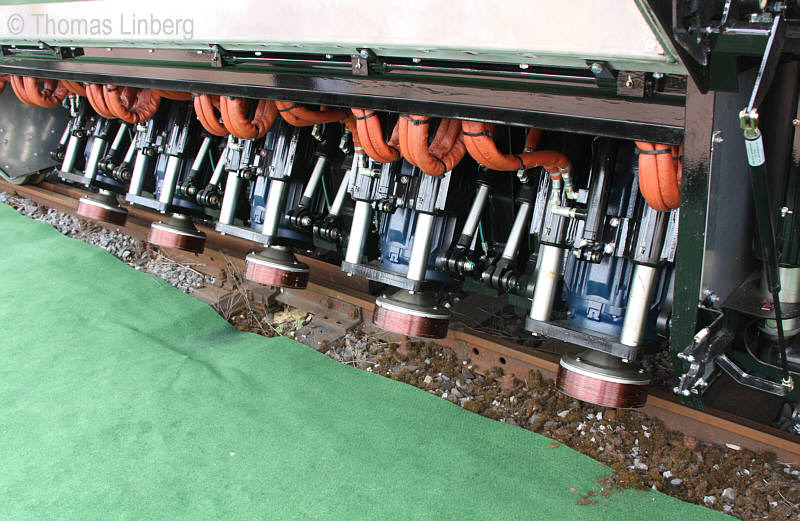

- Independent tilt and shift grind modules for complete grind pass coverage
- Designed to meet UIC specifications, weights and clearances
- A robust production rail grinding solution with the ability to perform specialty rail grinding.
- Axle loads between 20 – 27.6 ton (22.5 – 25 tonne)
- Flame-resistant hydraulic fluid
