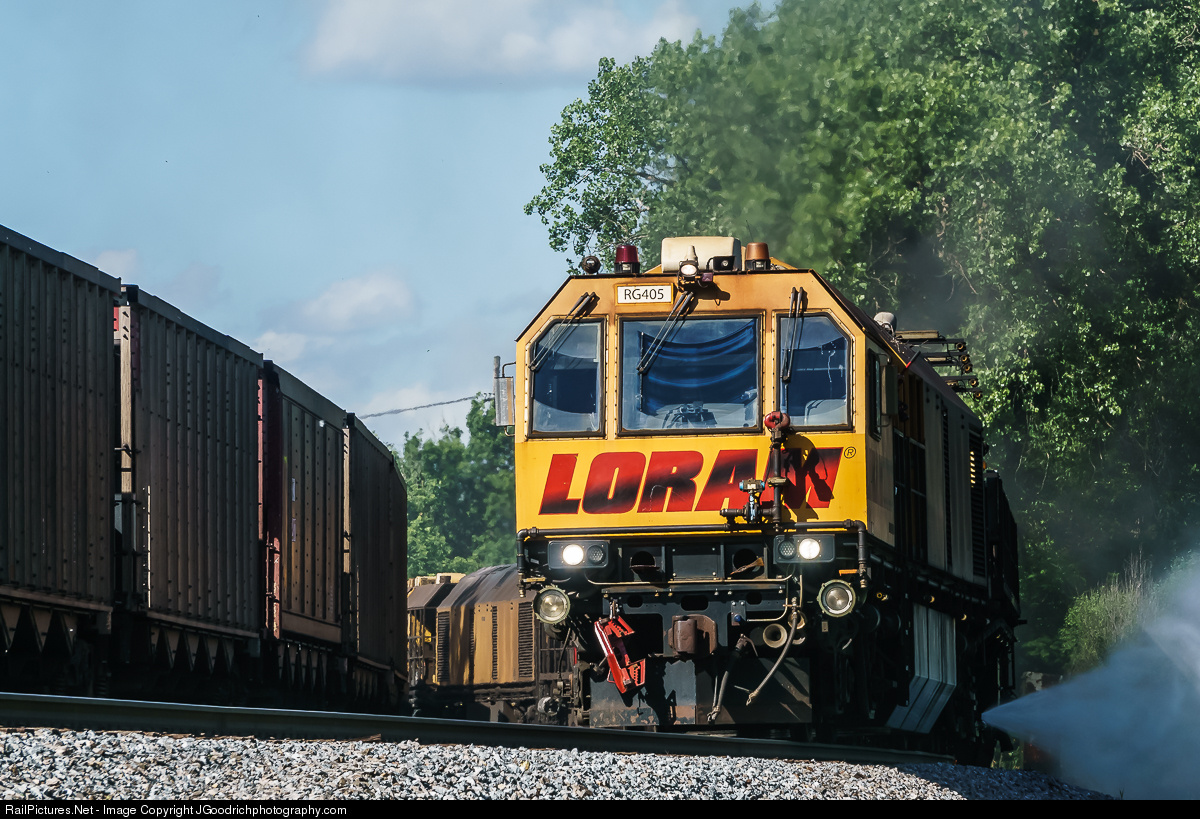

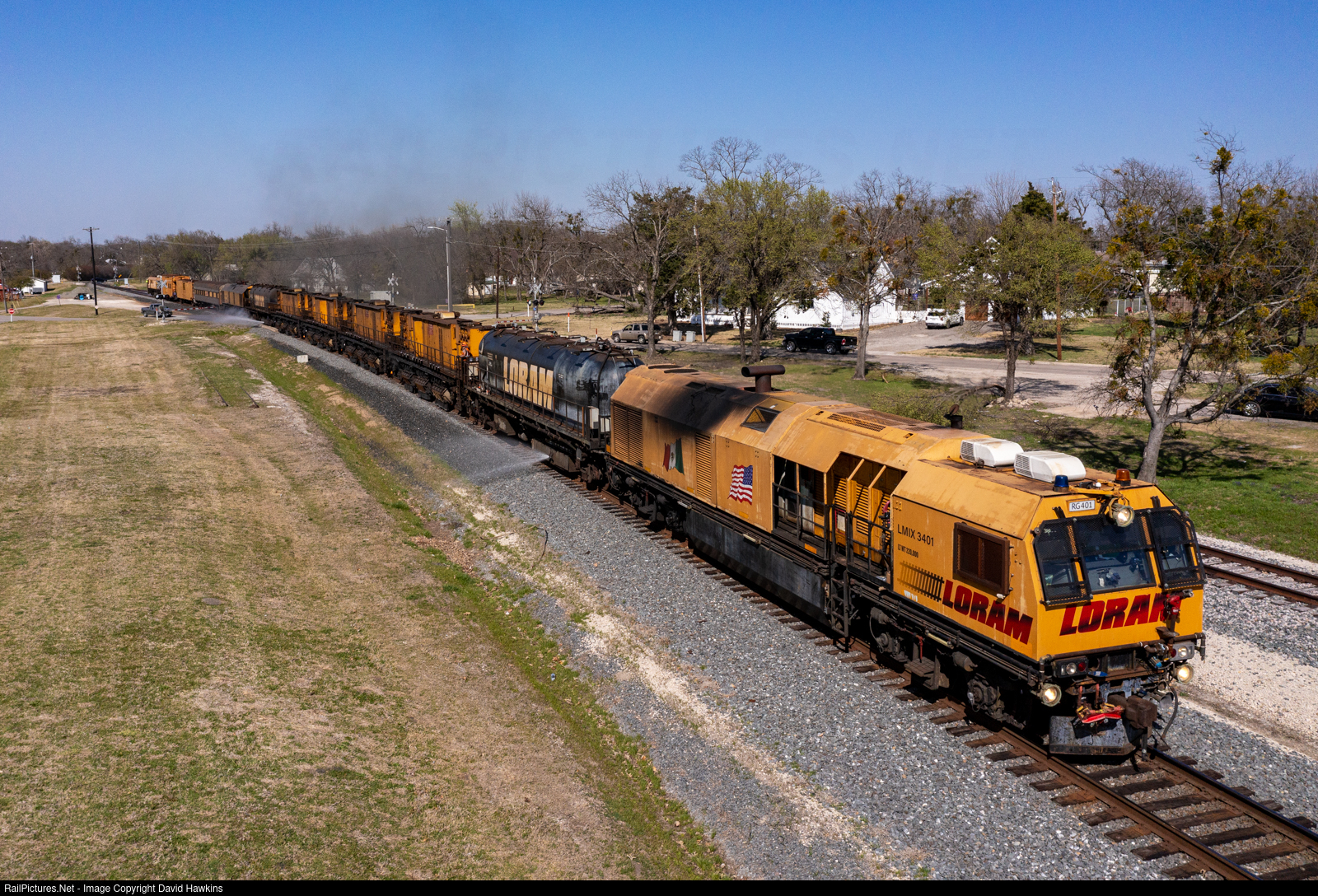

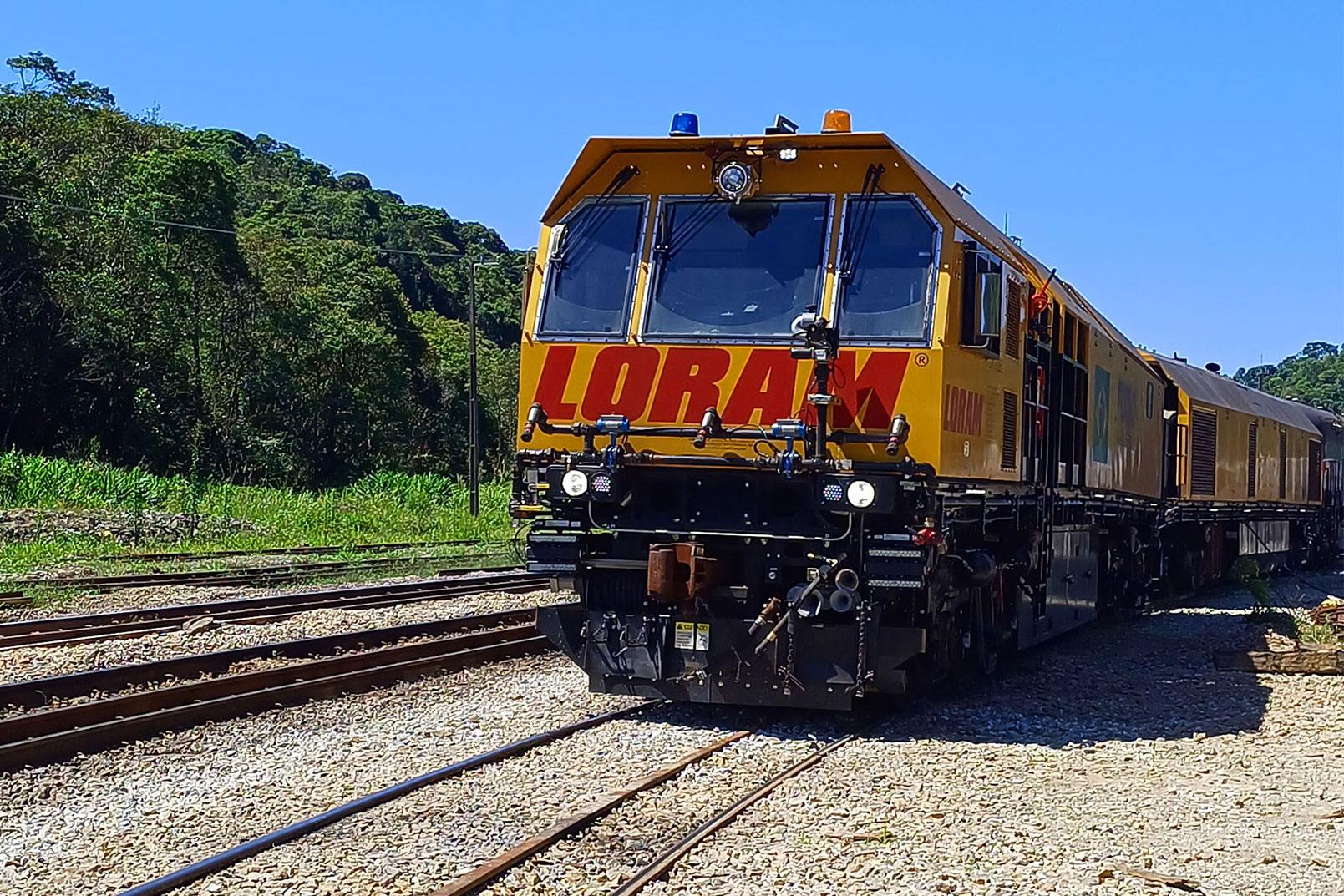

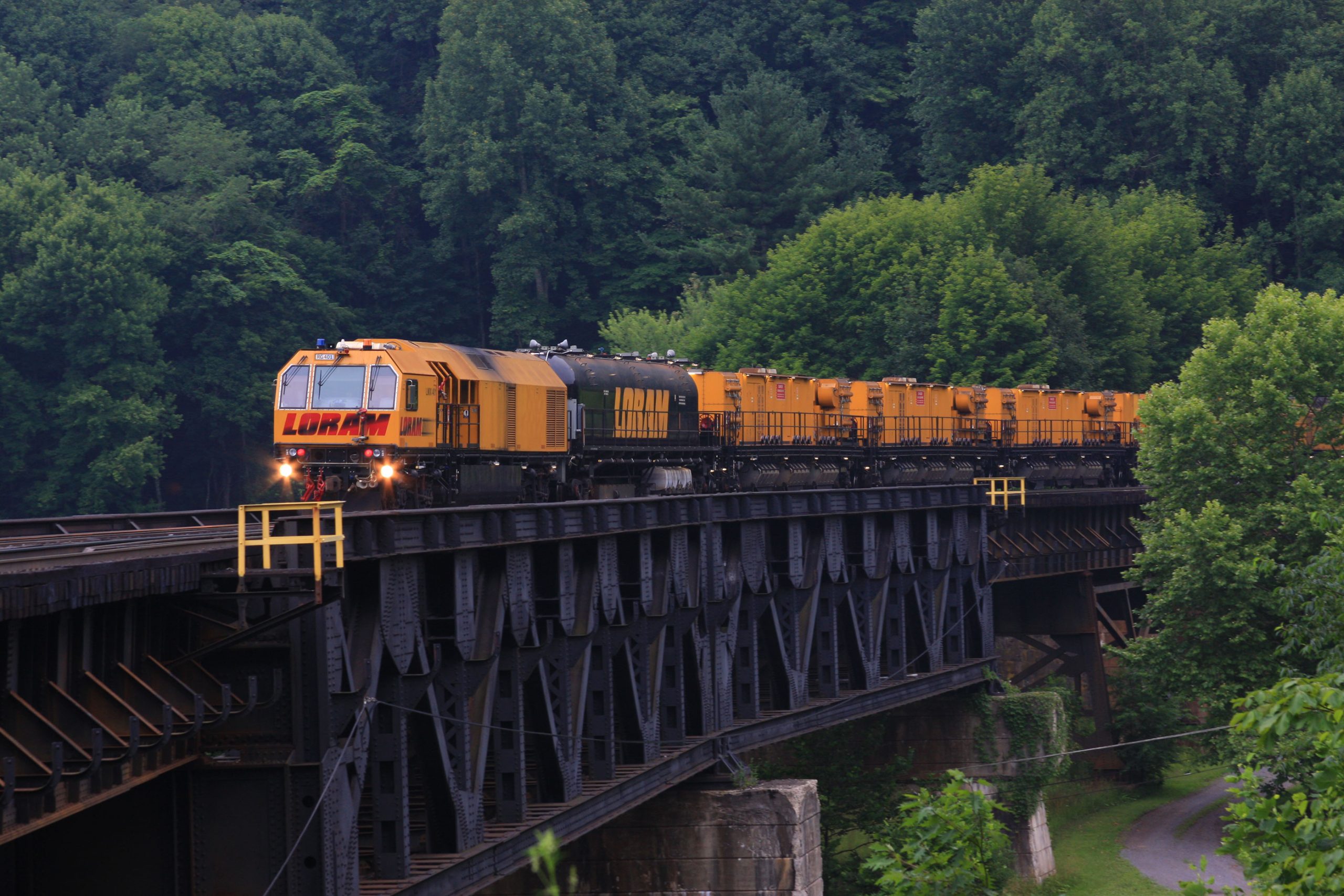

Loram RG400 Series Rail Grinders
Loram RG400 Series Production Rail Grinder is proven worldwide in heavy haul, freight and larger commuter railroad applications. The RG400 delivers industry-leading productivity through increased available horsepower, advanced grind control systems, more grind stones and leading-edge quality assurance technologies. Single-pass precision control and grinding power combine to deliver unmatched productivity for efficient, high-speed preventative rail grinding programs or for intensive defect correction and profile restoration in corrective rail grinding programs.
With the capability to grind up to 20 mph, the RG400 Series is the best choice for maximizing available track windows while lowering unit cost. This modular-designed rail grinder series is engineered for scalability, enabling the railroad to specify up to 120 stones for optimized grind program efficiency and productivity. Features such as horsepower compensation, Rail Pro® rail grinding management software tools, and state-of-the-art rail measurement and vision systems ensure the right amount of metal is removed in the right place to maximize the life of the rail.
| Spec | Data |
|---|---|
|
Length |
500 – 700 ft (152 m – 213 m) |
|
Width |
10.8 ft (3.3 m) |
|
Height |
15.5 ft (4.7 m) |
|
Maximum Axle Weight |
25.4 – 35.9 ton (23.0 – 32.5 tonne |
|
Grind Motors |
60 to 120; 30 hp (22.4 kw) each |
|
Grind Speed |
3 – 20 mph (5 – 32 km/h) |
|
Travel Speed |
Self-propelled up to 60 mph (100 km/h) |
|
Gradeability |
Up to 4% |
|
Minimum Grind Radius |
16° curve (110 m radius) |
|
Minimum Travel Radius |
22° curve (80 m radius) |
|
Grind Angles |
70° Gauge – 30° Field (100° range) |
|
Generator Power |
Up to 4.3 Mw, 480 Vac/60 Hz, 3 ph |
|
Fuel Capacity |
Up to 10,000 gal (37,900 L) |
|
Water Capacity |
25,000 – 75,000 gal (94,700 – 283,900 L) |
|
Track Gauge |
39.4 – 63 in. (1,000 – 1,600 mm) |
RG400 Series Grinder Additional Features & Benefits:
- Environmentally-friendly hydraulic fluid and robust dust collection systems
- Advanced dynamic braking and traction system
- Integral spark guards and blankets for fire suppression
- Advanced fire suppression technologies including ditch and tie sprays, foam,hose reels and mini-monitors
- Custom built, walk-around water cars hold up to 25,000 gallons of water per car, allowing the consist to carry up to 75,000 gallons while providing a safer work environment
- Enhanced operator ergonomics
- Auto machine lubrication to reduce maintenance and enhance accuracy
- The modular design enables the railroad to specify between 60 and 120 stones, depending on territory and railroad need
