Transit & switch grindingHarsco RGH20C Rail Grinder
The Harsco RGH20C is a 20-stone transit and switch grinder designed for switches, guarded curves, road crossings and complex track structures. Its independently controlled hydraulic grinding units operate across the rail head and can be fitted with verified 152 mm wheel configurations.
What is the Harsco RGH20C?
RGH20C is commonly used for the 20-stone configuration within Harsco Rail’s RGHC transit and switch grinder family. Harsco describes the platform as suitable for switches, guarded curves and road crossings, with adjustable-gauge versions available. Independent grinding heads allow different rail-head positions to be treated under preset pattern control.
This page documents the RGH20C model and ordering information for its grinding consumables. For a broader comparison of Harsco platforms, see the Harsco rail grinding guide.

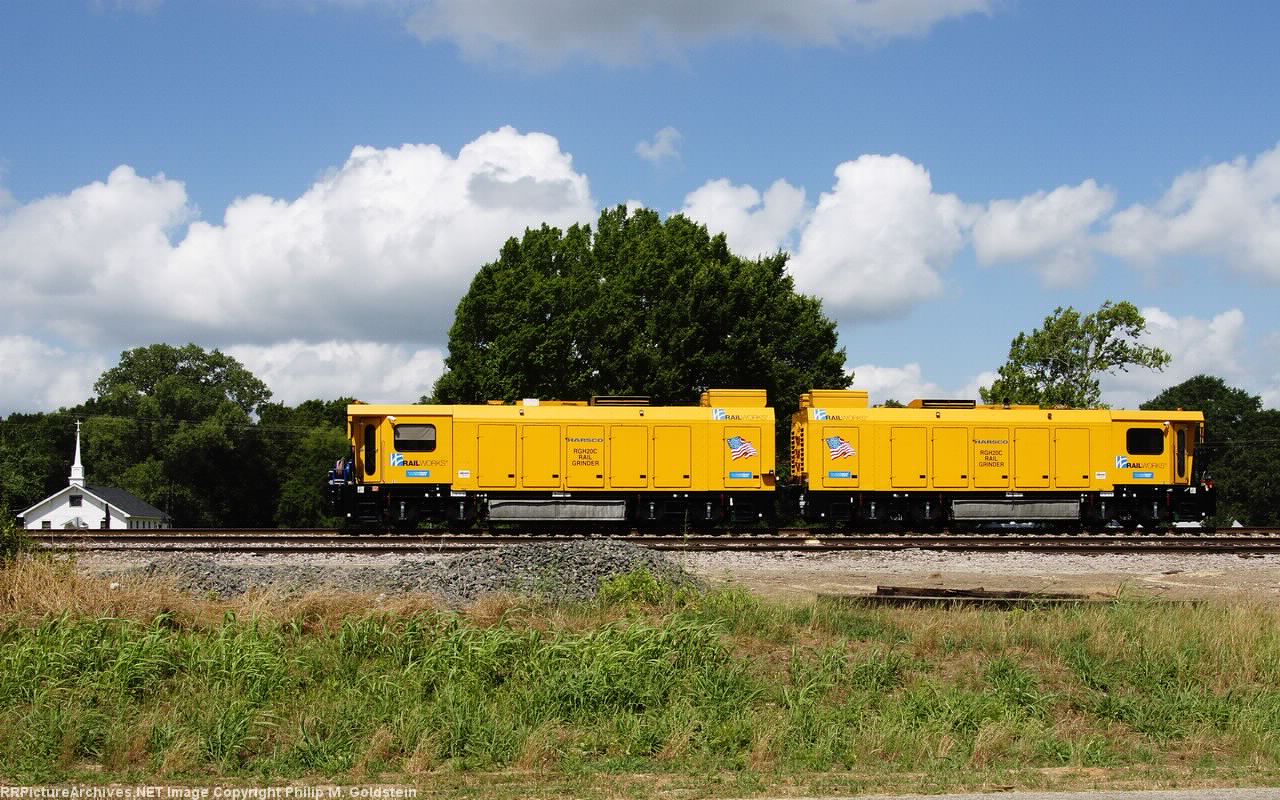

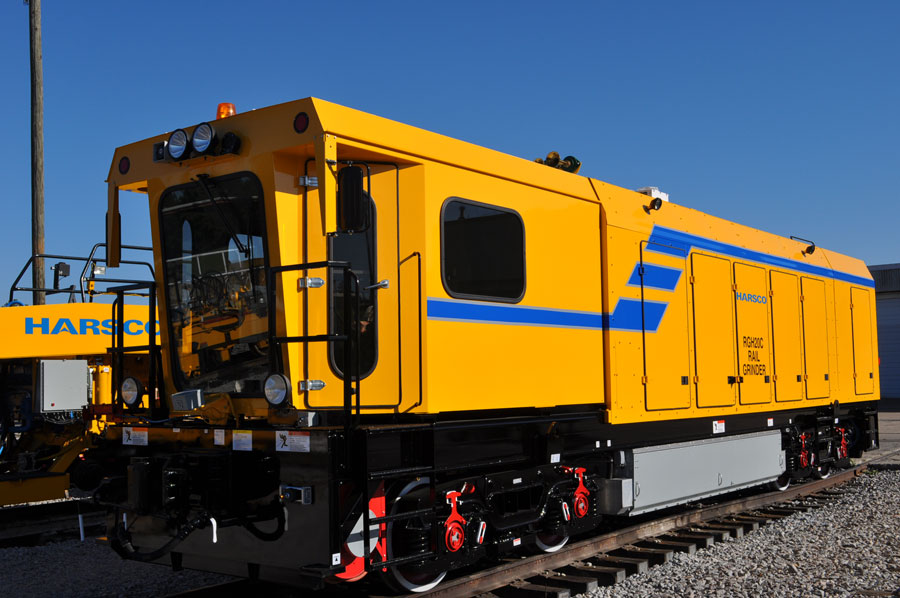

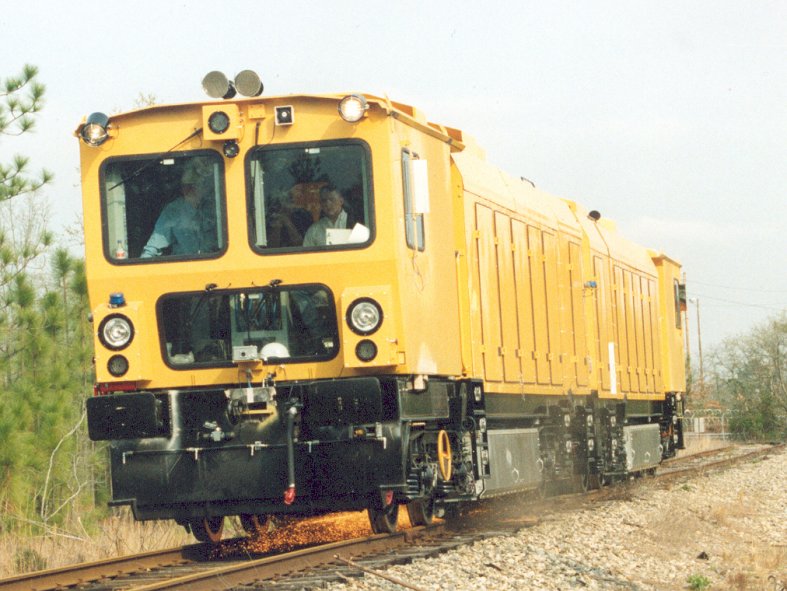

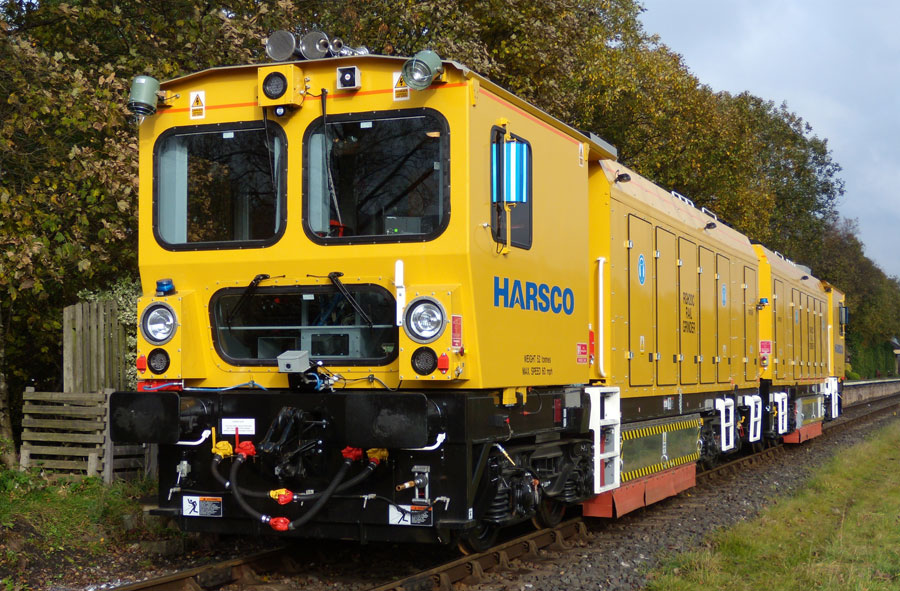

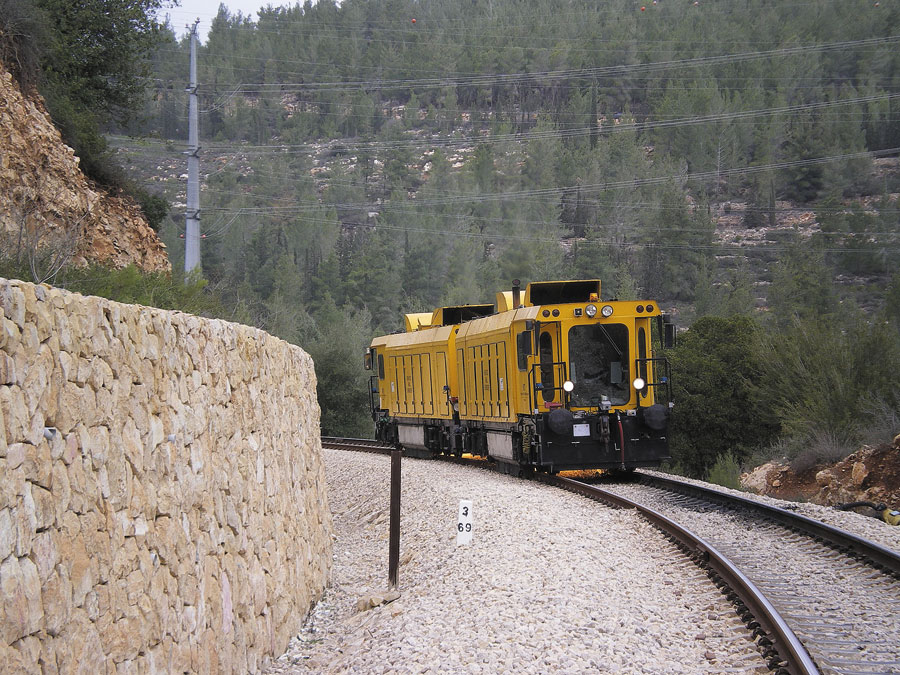

Harsco RGH20C gallery
All eight photographs from the original model entry are retained.
RGH20C key specifications
The RGHC grinding-system values are taken from Harsco Rail’s transit/switch grinder brochure. Vehicle dimensions below describe the documented RGH20C fleet example represented by the original page and can vary between delivered machines.
How the RGH20C grinding system works
Select pattern
The operator selects a preset grinding pattern for the required rail-head profile and track structure.
Position heads

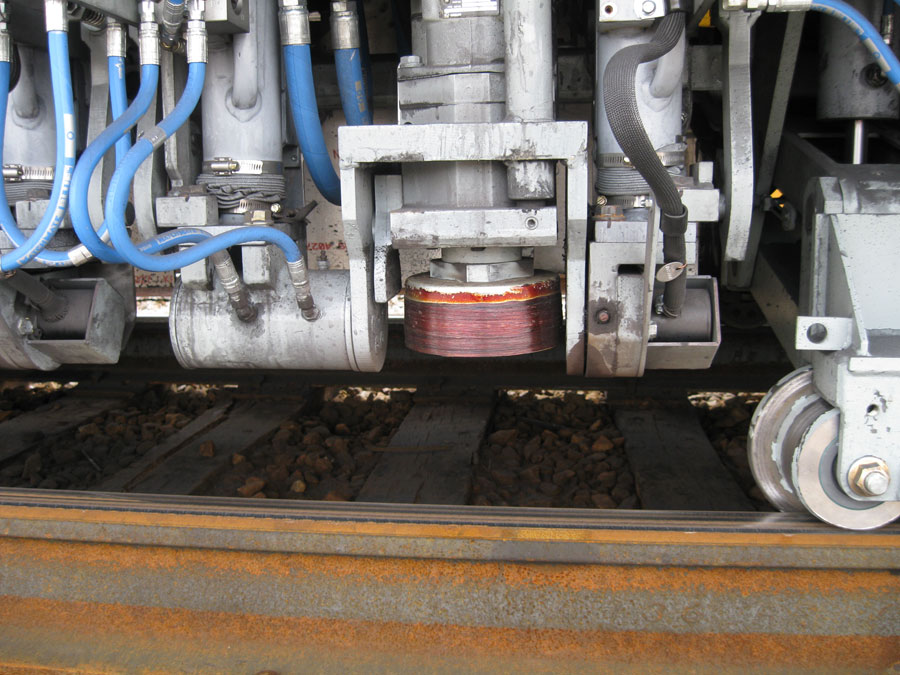

A linkage rotates each unit while translating it across the rail from gauge to field side.
Control power
Each hydraulically driven grinding unit can be controlled independently during the pass.
Contain debris
Protective skirts, spark suppression, water systems and dust collection manage the grinding environment.
Typical RGH20C applications
Independent head control supports grinding around complex turnout components.
Rail-head treatment where guard rails and restricted geometry require flexible head positioning.
Specialty grinding through embedded or constrained track structures.
Profile correction and surface-defect treatment on metro, commuter and urban rail networks.
Harsco RGH20C video
The original page’s RGH20C video is retained as an operating reference. Fleet configuration and working conditions may differ.
152 × 80 × M20 rail grinding wheel
This resin-bonded 152 mm grinding wheel uses an M20 threaded mounting and is listed for verified Harsco RGH20C applications. The installed head, thread, operating speed and existing wheel marking must be checked before ordering.
- Dimensions
- 152 × 80 mm
- Mounting
- M20 internal thread
- Bond
- Resin bond
- Maximum speed
- 50 m/s
Information required before ordering
Harsco RGH20C FAQ
What is the Harsco RGH20C?
It is the 20-stone configuration commonly associated with Harsco Rail’s RGHC transit and switch grinder family.
Where is the RGH20C used?
The platform is designed for switches, guarded curves, road crossings, transit track and other structures requiring independent grinding-head control.
How fast do the grinding units rotate?
Harsco’s RGHC brochure specifies 6,000 RPM for the independent hydraulic grinding units.
What wheel is shown on this page?
The product reference is a 152 × 80 mm resin-bonded wheel with an M20 internal thread and a published maximum speed of 50 m/s.
Can an M20 wheel replace a 5/8-11 wheel?
No. M20 is metric and 5/8-11 is imperial. Confirm the installed spindle thread and approved drawing before ordering.
